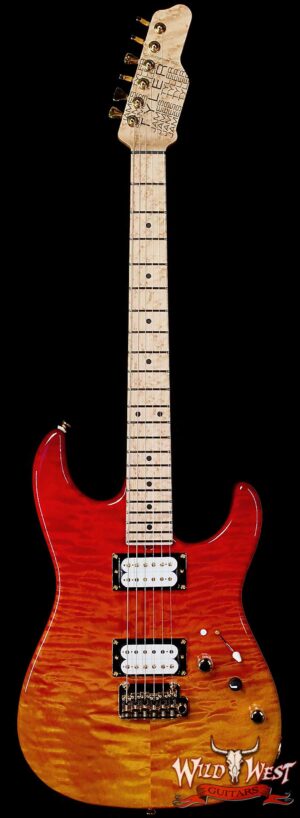

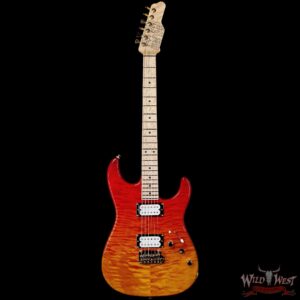

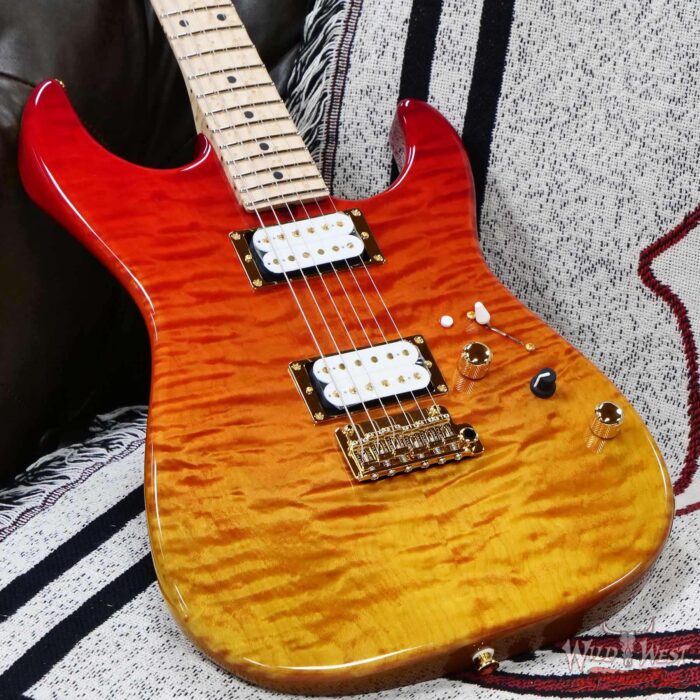

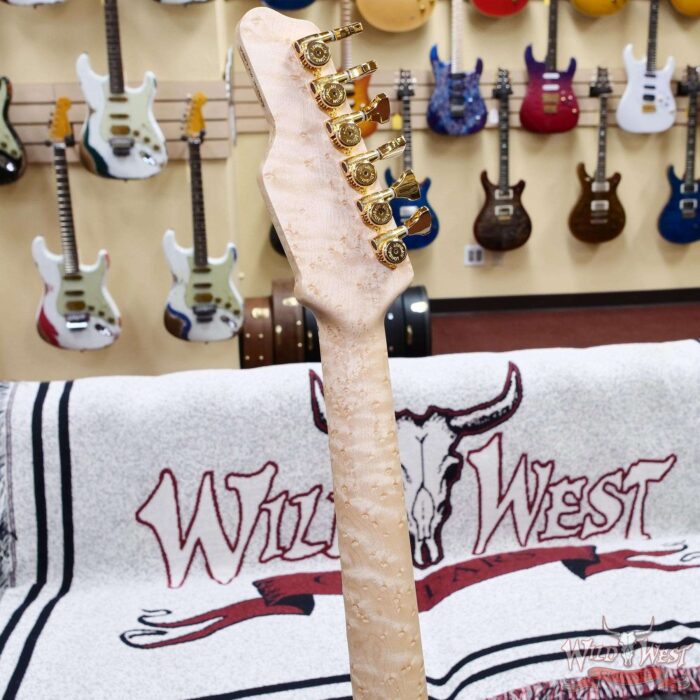

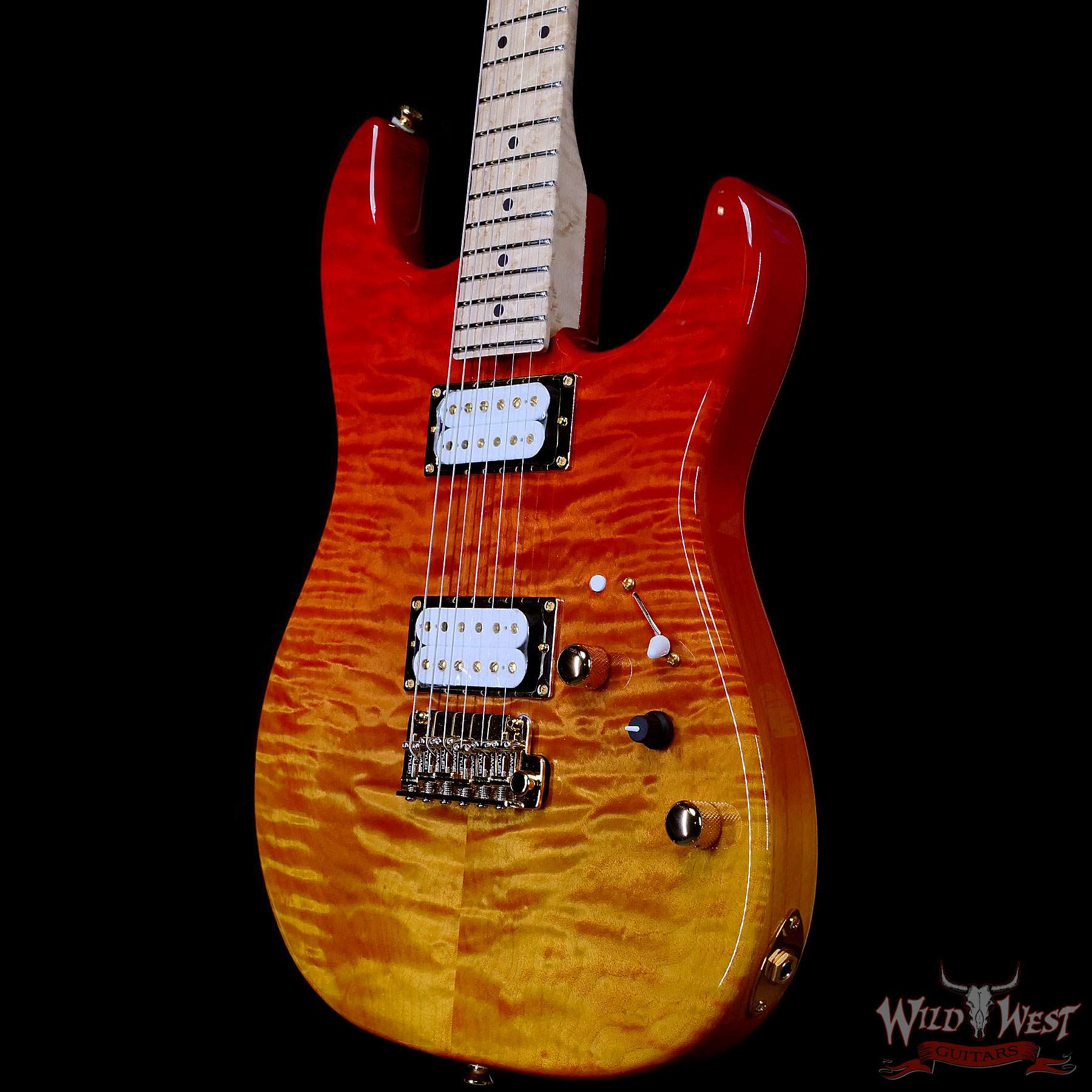

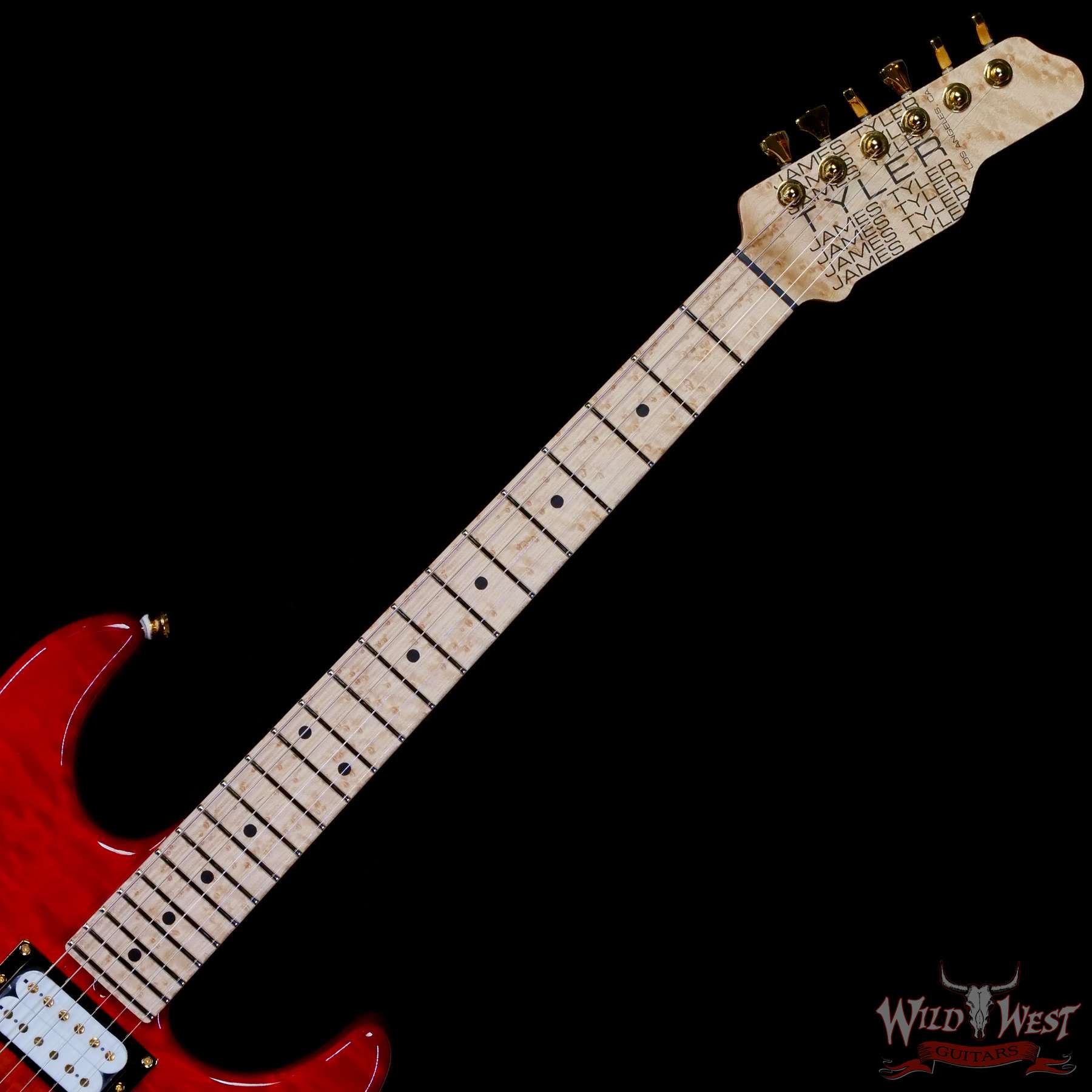

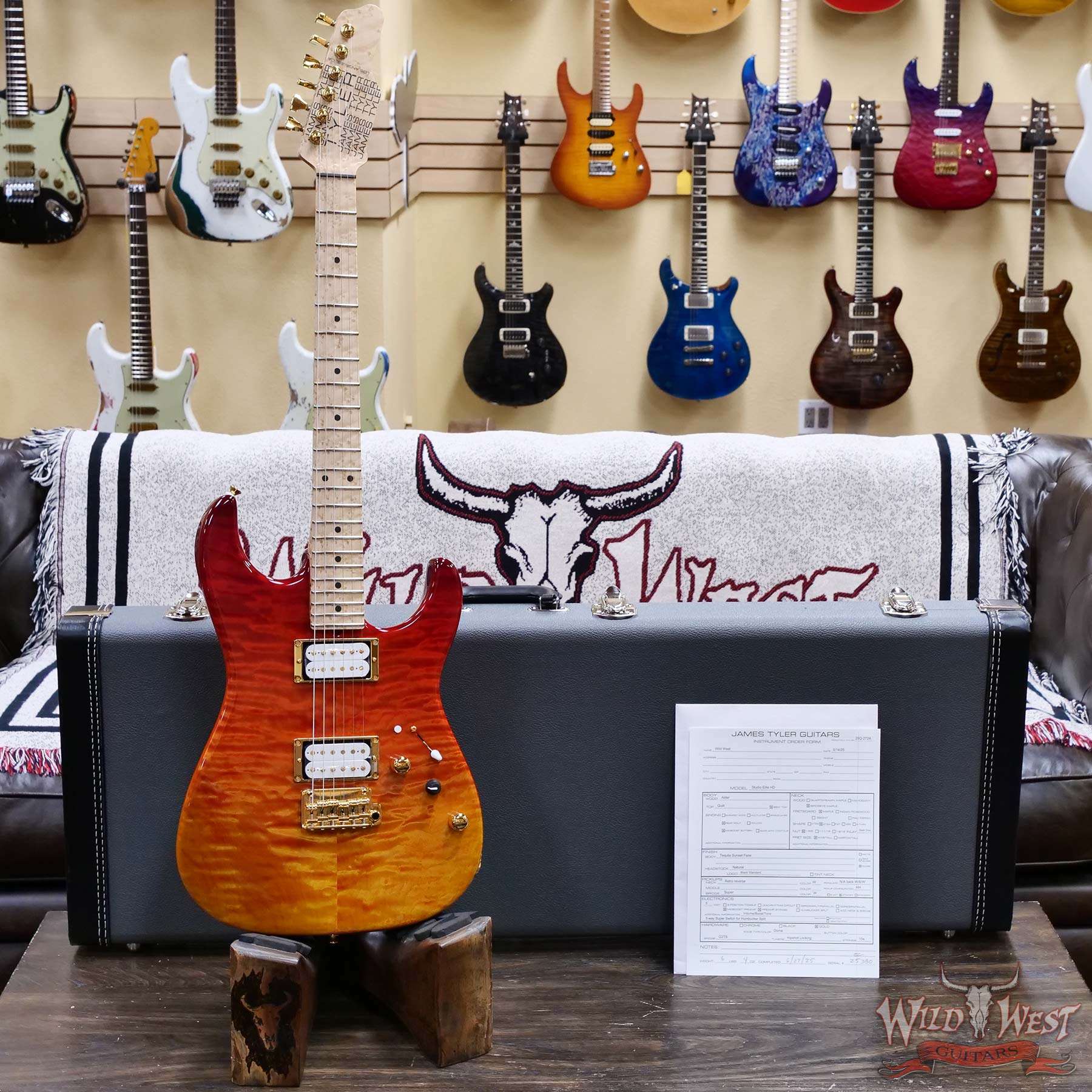

James Tyler USA Studio Elite HD Dual Humbucker Quilt Maple Top with Alder Body 5A Birdseye Maple Neck Tequila sunset Fade 6.25 lbs
STUDIO ELITE HD
This guitar is all about getting back to basics, which has made it one of our most popular models. A mid-boost preamp plus good selection of hardware, pickup and finish options allow customized simplicity that still has plenty of “kick”.
Special 5-Way Switch Configuration:
- Position 1: Neck humbucker
- Position 2: Neck and bridge inside coils (parallel)
- Position 3: Neck and bridge humbuckers (full) wired in parallel
- Position 4: Neck and bridge outside coils (parallel)
- Position 5: Bridge humbucker
Super – Bridge Humbucker
High Output Humbucker
Modern straight-up rock pickup. Strong low end, less mid-range push than the Shark or the California Special, but more top end with a nice presence. Great for high gain. Cleans up nicely.
Alnico 5 magnets, counter clockwise winding direction, screw coil south and slug coil north polarity, 53mm wide f spacing, 50mm narrow g spacing. straight humbuckers have a standard coil layout and slanted humbuckers have a traditional Tyler coil layout with pickup at angle and offset coils. dc specs 17.60 +/-
Retro(Reverse) – Neck Humbucker
Low Output Humbucker
Paf like in character, the Retro has a warm clean sound with nice top end that’s not too bright, even at midrange response. Nice overdrive with good articulation. Smooth, creamy, classic voicing.
Neck: alnico 5 magnets, counter clockwise winding direction, screw coil south and slug coil north polarity, 53mm wide f spacing, 50mm narrow g spacing. straight humbuckers have a standard coil layout and slanted humbuckers have a traditional tyler coil layout with pickup at angle and offset coils. dc specs 7.25 +/-
