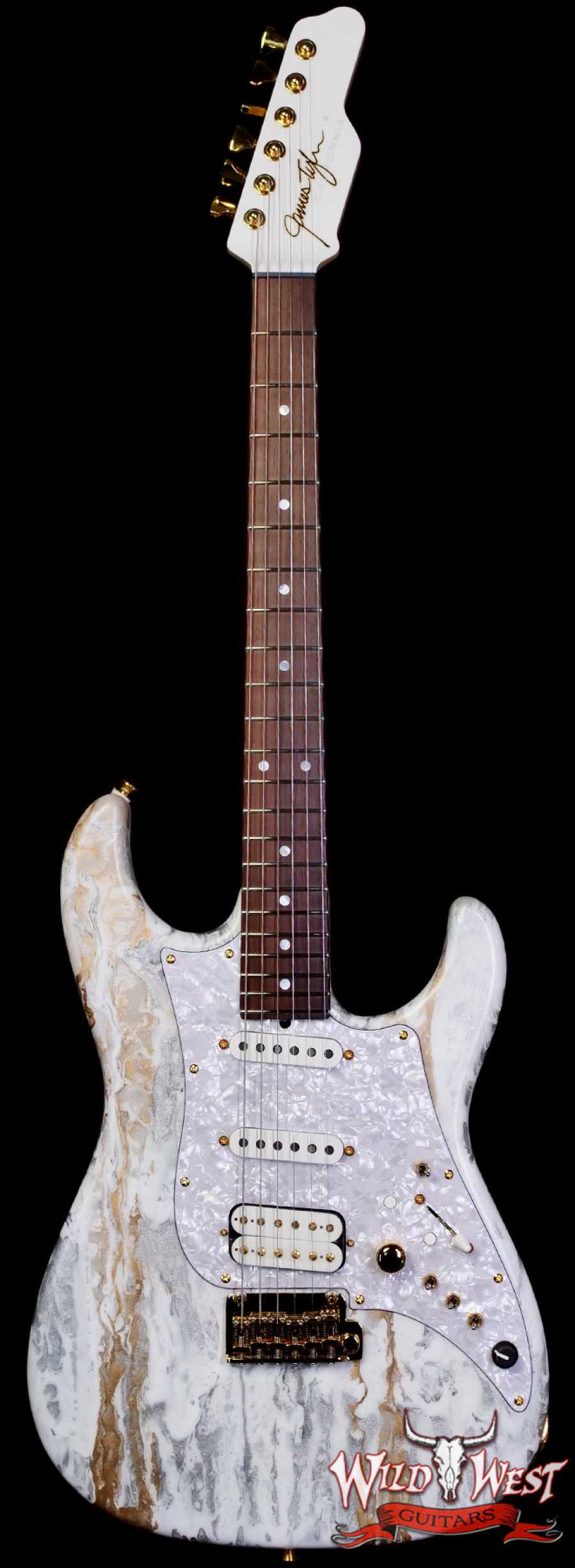

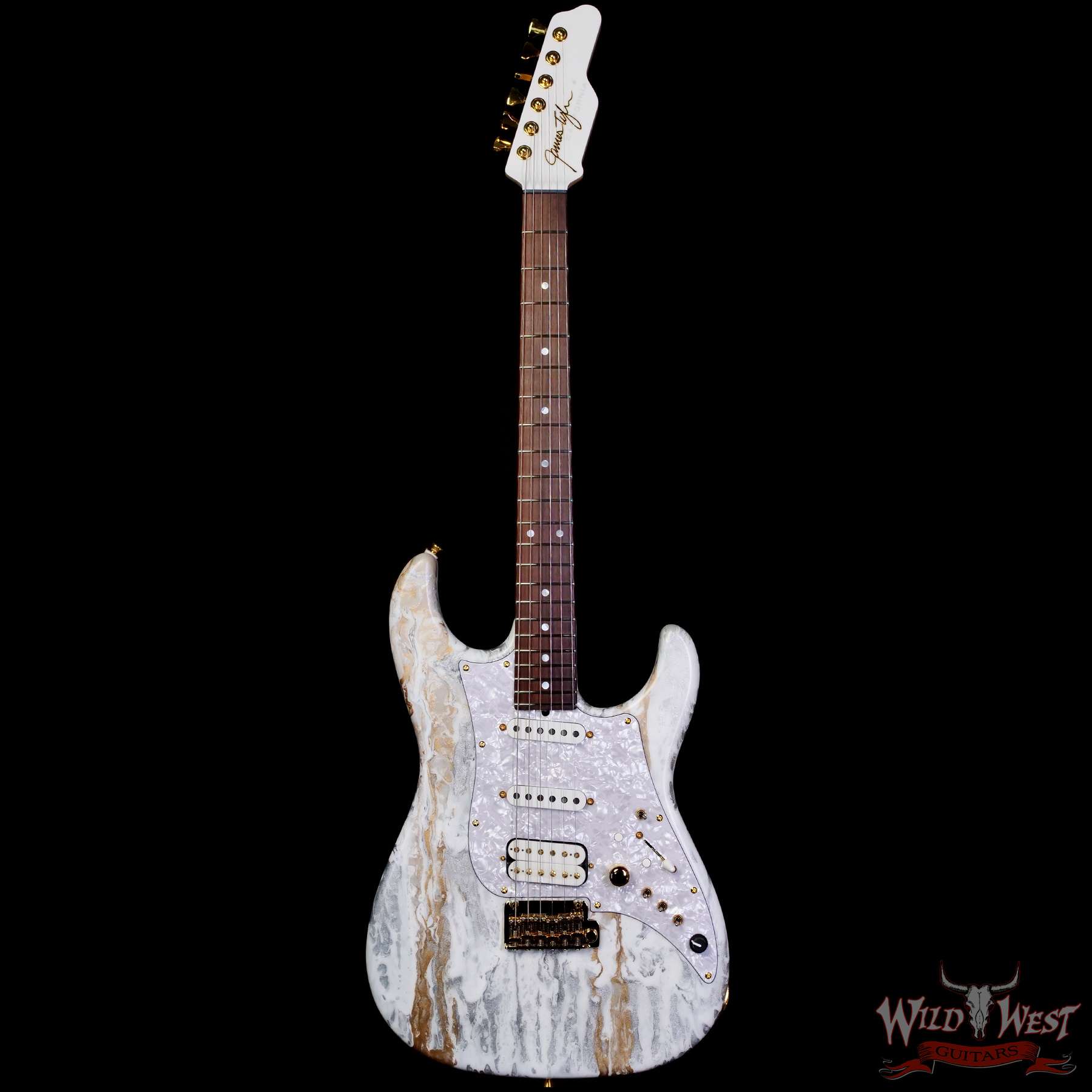

James Tyler USA Studio Elite Alder Body Indian Rosewood Fingerboard White Shmear with Gold Hardware 7.65 LBS

SKU: 25175 Category:

Model: James Tyler USA Studio Elite

DESCRIPTION

James Tyler USA Studio Elite Alder Body Indian Rosewood Fingerboard White Shmear with Gold Hardware 7.65 LBS

STUDIO ELITE SERIES

The Studio Elite models of James Tyler Guitars are the pinnacle of form, function, and sound. Years of feedback from revered studio and gigging guitarists culminated into the ultimate in electric guitars.

Supercharged Studebaker

Medium Output Humbucker

Growl for days with tight lows and more mid punch. Great overdrive with good balance. The Supercharged Studebaker still has the clarity and versatility of the Studebaker with good dynamics and flexibility. Cleans up well.

Seymour Duncan Classic Stack Plus (Neck/Middle)

Vintage Voiced Noiseless ST Pickup

The Classic Stack Plus neck pickup looks and sounds like a true Stratocaster single coil but none of the traditional single coil hum. It’s got all of the sparkle and the chime that you would expect from a vintage Strat pickup. Like its neck counterpart, the Classic Stack Plus middle pickup provides all of the classic Strat chime. However, we build it RWRP to give you that perfect in-between sound of positions 2 & 4 when split to keep the set completely hum-free in all selector positions.

Complete the set with the Classic Stack Plus bridge pickup, which is wound slightly hotter than the neck and middle models to provide an even balance and output between positions. Back in the 80s we patented a special bottom coil that actually injects negative hum into the pickup circuit and at the end of the production process, we fine tune each pickup for maximum noise cancelation. You get all the great qualities of a classic Strat pickup, and none of the hum.

Hand built in Santa Barbara, CA, the Classic Stack Plus Stratocaster pickups use hand ground alnico 5 rod magnets and comes with a splittable 3-conductor lead wire to give you access to true single coil operation. Each pickup wax potted for squeal free performance.

Rhythm/Lead Circuit

The “Rhythm/Lead Circuit” is a distinctive feature found on certain James Tyler guitars, notably the Studio Elite model. This circuit enhances the instrument’s versatility by allowing players to switch between preset pickup configurations seamlessly.

Functionality:

  • Lead/Rhythm Toggle Switch: Enables quick transitions between two modes:
    • Rhythm Mode: Engages the pickup selection as determined by the 5-way selector switch, offering a range of tonal options.
    • Lead Mode: Overrides the current pickup selection to activate the bridge pickup in series mode, delivering a powerful, full-output sound ideal for solos.
  • Add Neck & Bridge Button

    The “Add Neck & Bridge” button on James Tyler Guitars allows players to engage both the neck and bridge pickups simultaneously, offering a unique tonal blend not typically available with standard pickup configurations. This feature enhances the guitar’s versatility, enabling a combination of the warmth from the neck pickup and the brightness of the bridge pickup for a rich, full-bodied sound.

3-Way Mini Toggle for Each Pickup (Series/Split/Parallel)

Each pickup features a dedicated 3-way mini toggle switch, providing enhanced control over tonal shaping and pickup response:

  • Up – Series Coils: Standard humbucker mode, delivering a full, powerful tone with increased output and natural hum cancellation.
  • Middle – Split Coils: Activates a true single-coil for enhanced clarity and articulation, with 60Hz noise present (hum-canceling in selector positions 2 & 4).
  • Down – Parallel Coils: Engages both coils in parallel, producing a brighter, more open sound with a slightly lower output—cooler and more subtle than series mode while still maintaining hum cancellation.
  • This versatile coil-switching system allows for dynamic tonal flexibility, catering to a wide range of playing styles and musical genres.

    Mid-Boost System: Definition & Functionality

    The Mid-Boost System is an onboard active circuit designed to enhance midrange frequencies, providing increased warmth, sustain, and punch to the guitar’s tone. It is particularly useful for cutting through a mix, adding body to clean tones, and driving amplifiers harder for a more dynamic and expressive lead sound.

    How It Works:

  • Utilizes an active preamp (often powered by a 9V battery) to boost midrange frequencies while preserving clarity.
  • Can be controlled via a dedicated knob or push/pull potentiometer, allowing for fine-tuned adjustments to the midrange response.
  • Typically provides up to +25dB of boost, allowing for increased sustain and more pronounced presence in a band mix.
  • Works effectively with single-coils and humbuckers, making it highly versatile across various musical styles.
    FEATURES
    Model James Tyler USA Studio Elite
    Builder James Tyler Guitars
    Year 2025
    Body Type Solid Body

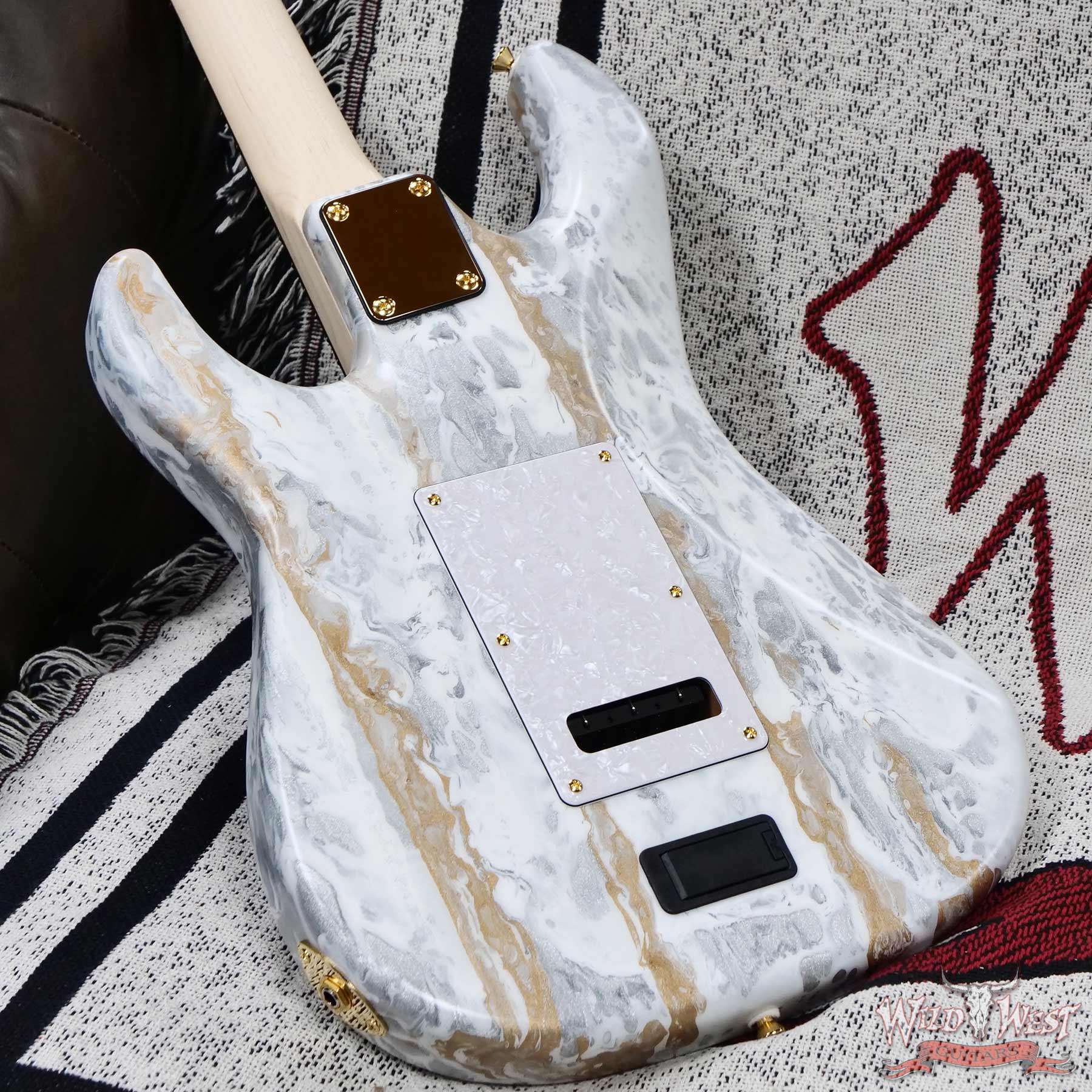

    Body Wood Alder
    Finish Type Semi-Gloss
    Finish Color White Shmear

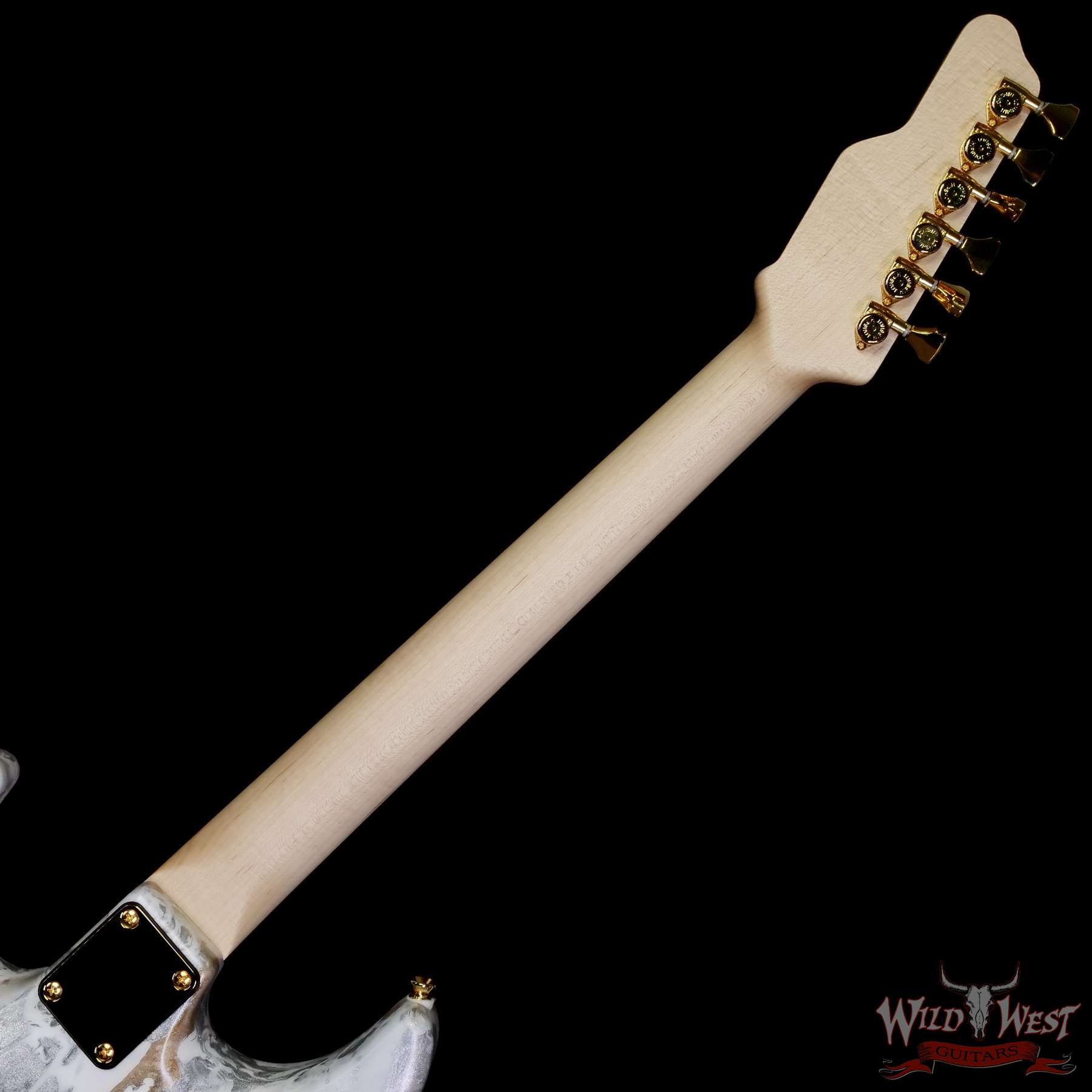

    Neck Wood Quartersawn Maple

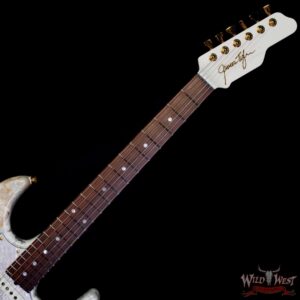

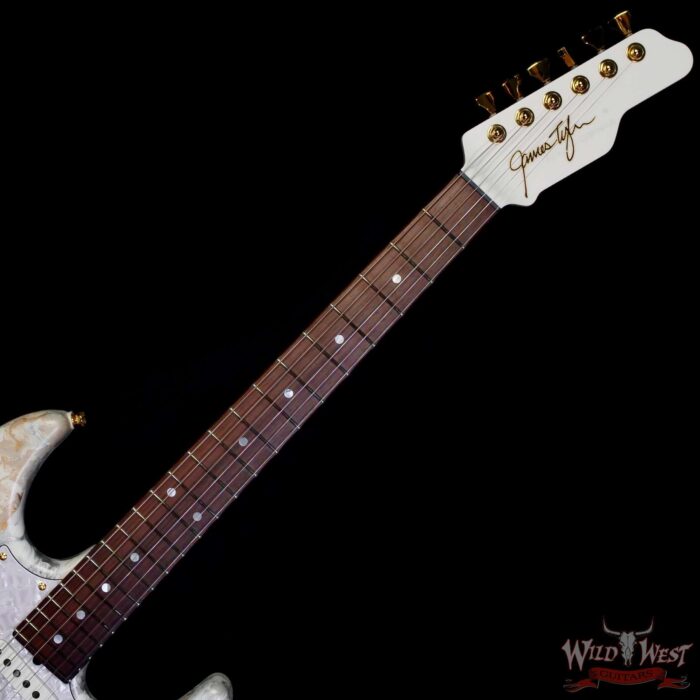

    Fingerboard Indian Rosewood
    Neck Carve Standard ’59
    Scale Length 25.5”
    Neck Dimensions .845” 1st – .975” 12th
    Neck Radius Standard ’59
    Frets 22 – .110′ x .055′
    Nut Width 1 5/8″ / 41.3mm
    Nut Material Tusq
    Neck Finish Satin
    Inlays White Mother of Pearl Dots
    Side Dots White Mother of Pearl Dots

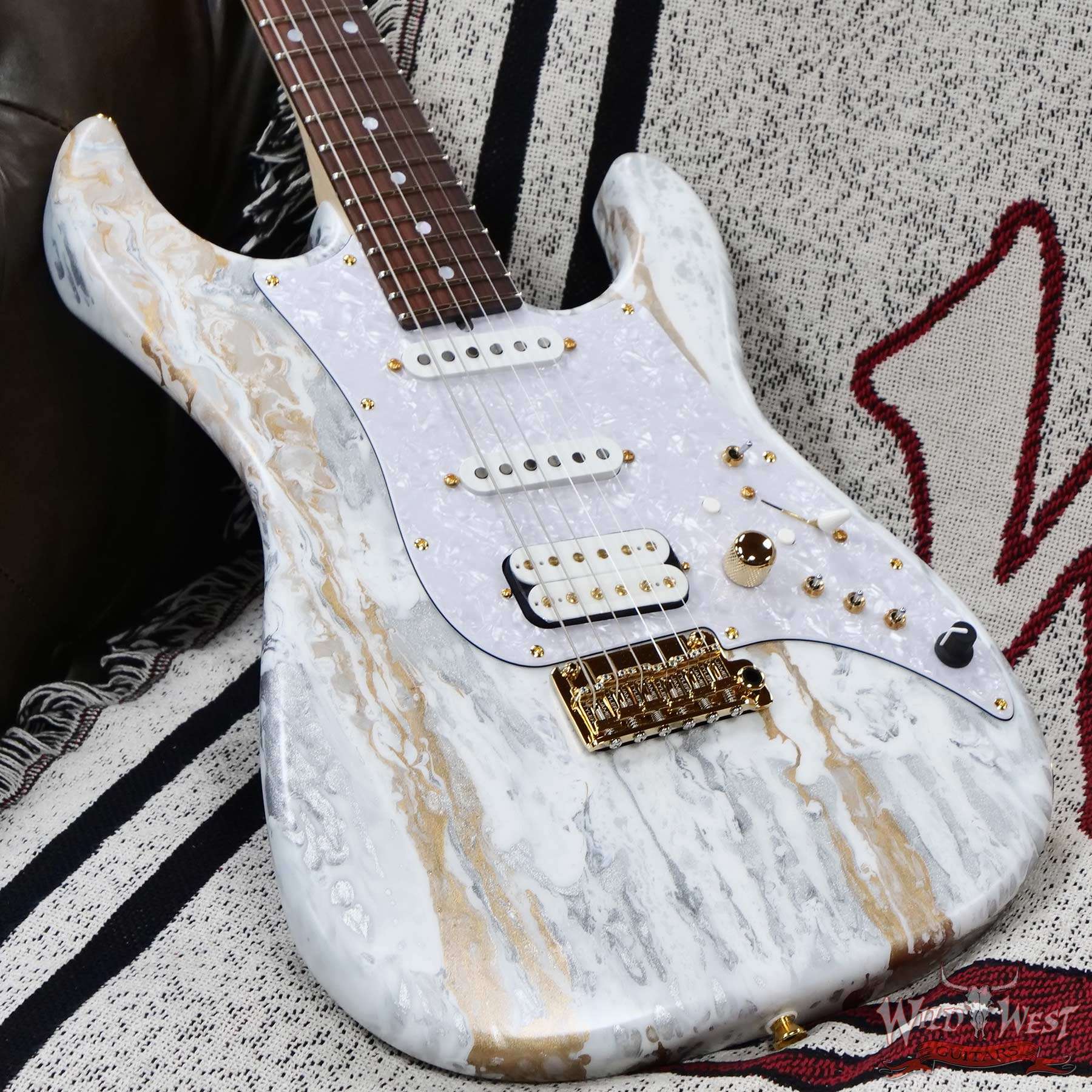

    Neck Pickup Duncan Classic Stack (Slanted)
    Middle Pickup Duncan Classic Stack (Slanted)
    Bridge Pickup JTG Supercharged Studebaker (Slanted)
    Pickguard White Pearliod
    Hardware Gold
    Bridge G2TS

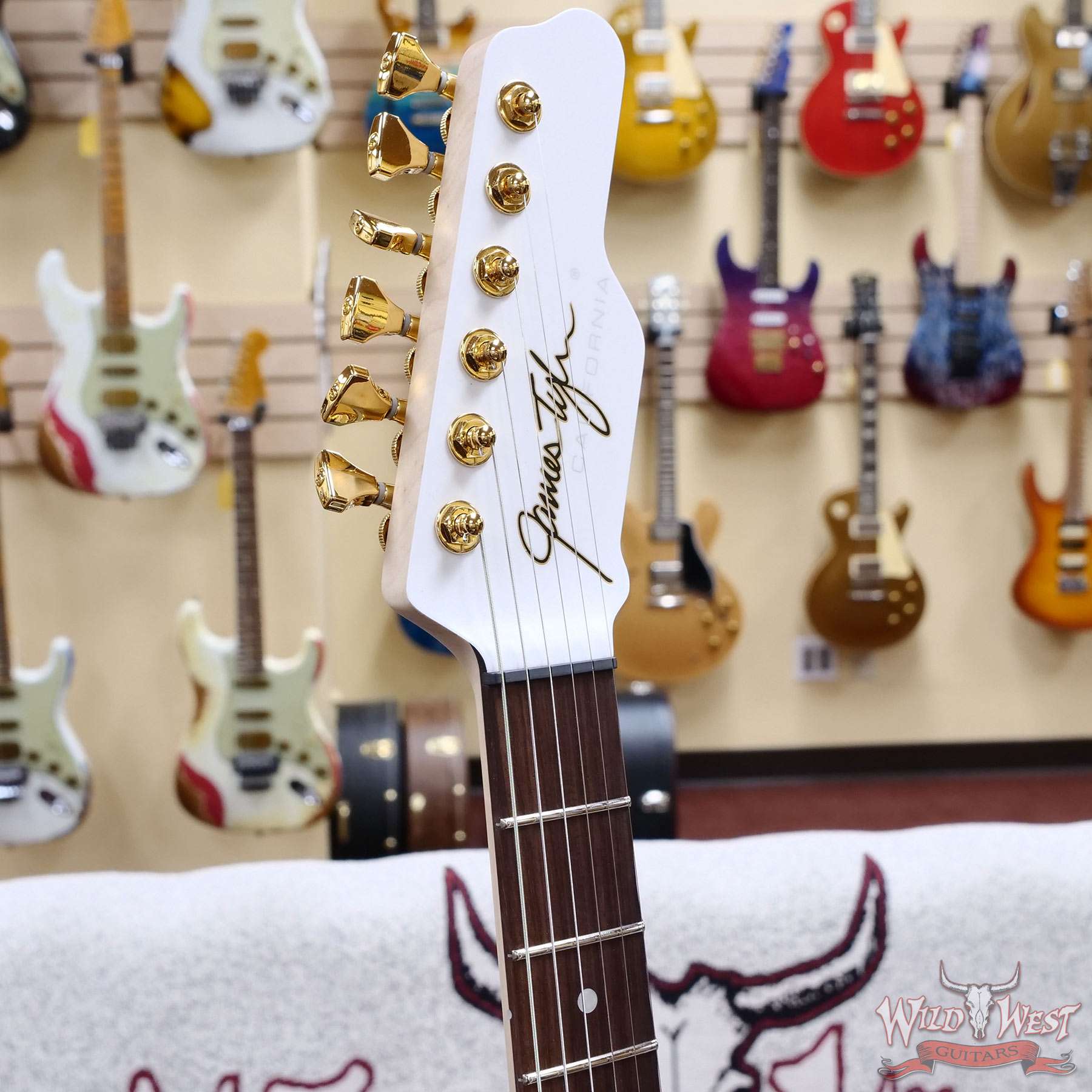

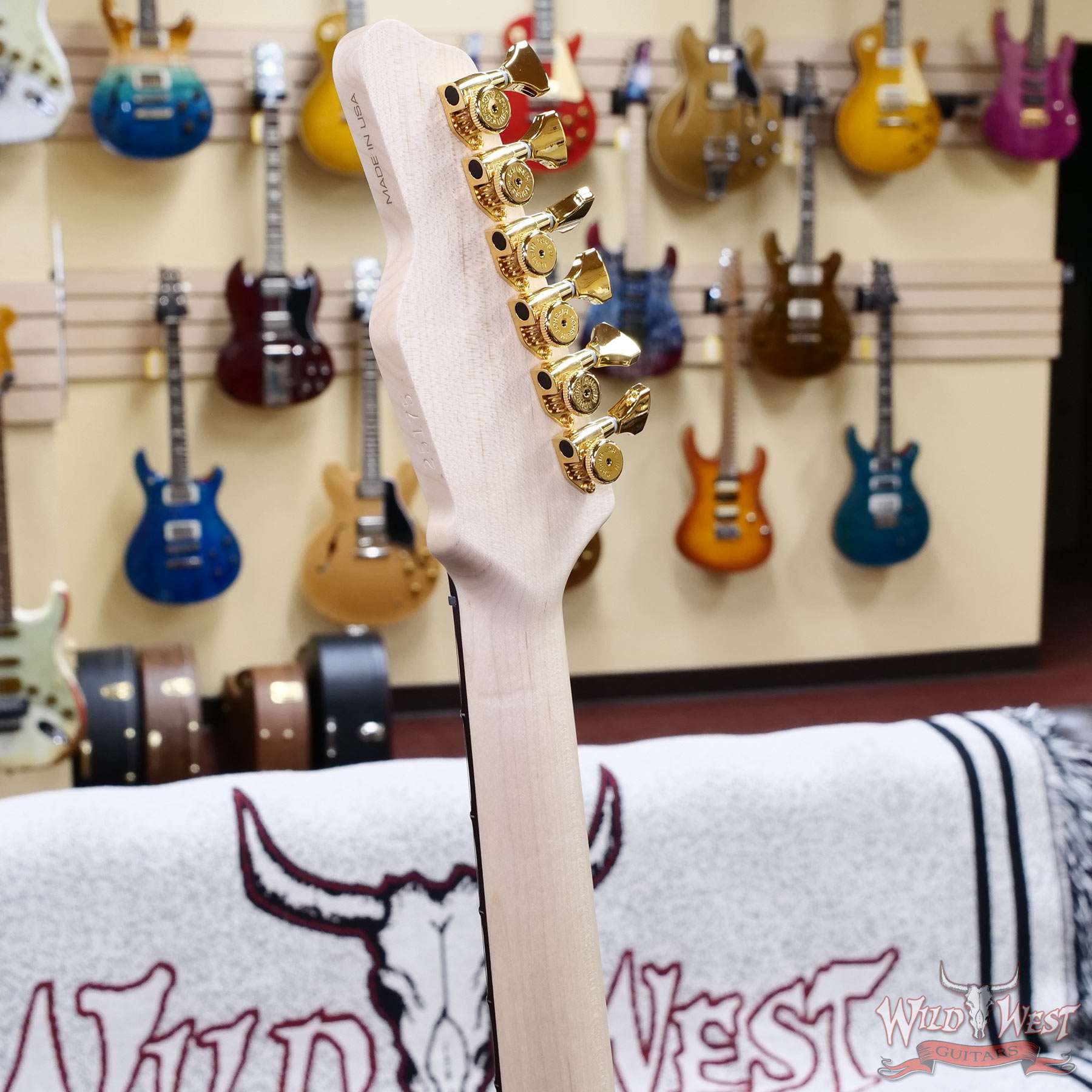

    Tuners Hipshot Locking

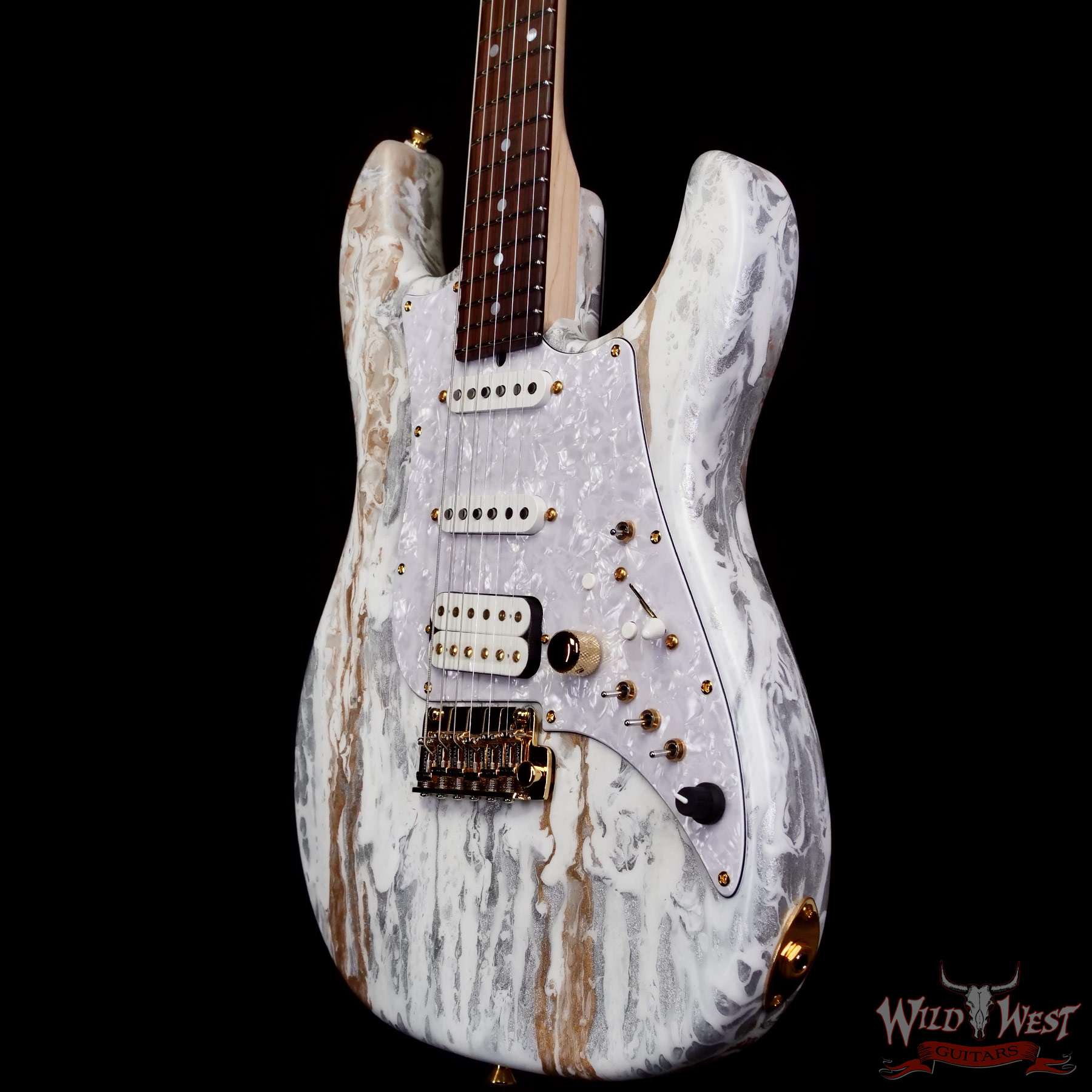

    Controls 5-way selector switch / Master volume / midboost preamp with bypass button / Series/Split/Parallel mini-toggle for each pickup
    Electronics 3x 3-way mini-toggle(Series/Split/Parallel) for each pickup / Lead/Rhythm Circuit 2-way toggle switch / Add Neck & Bridge Button

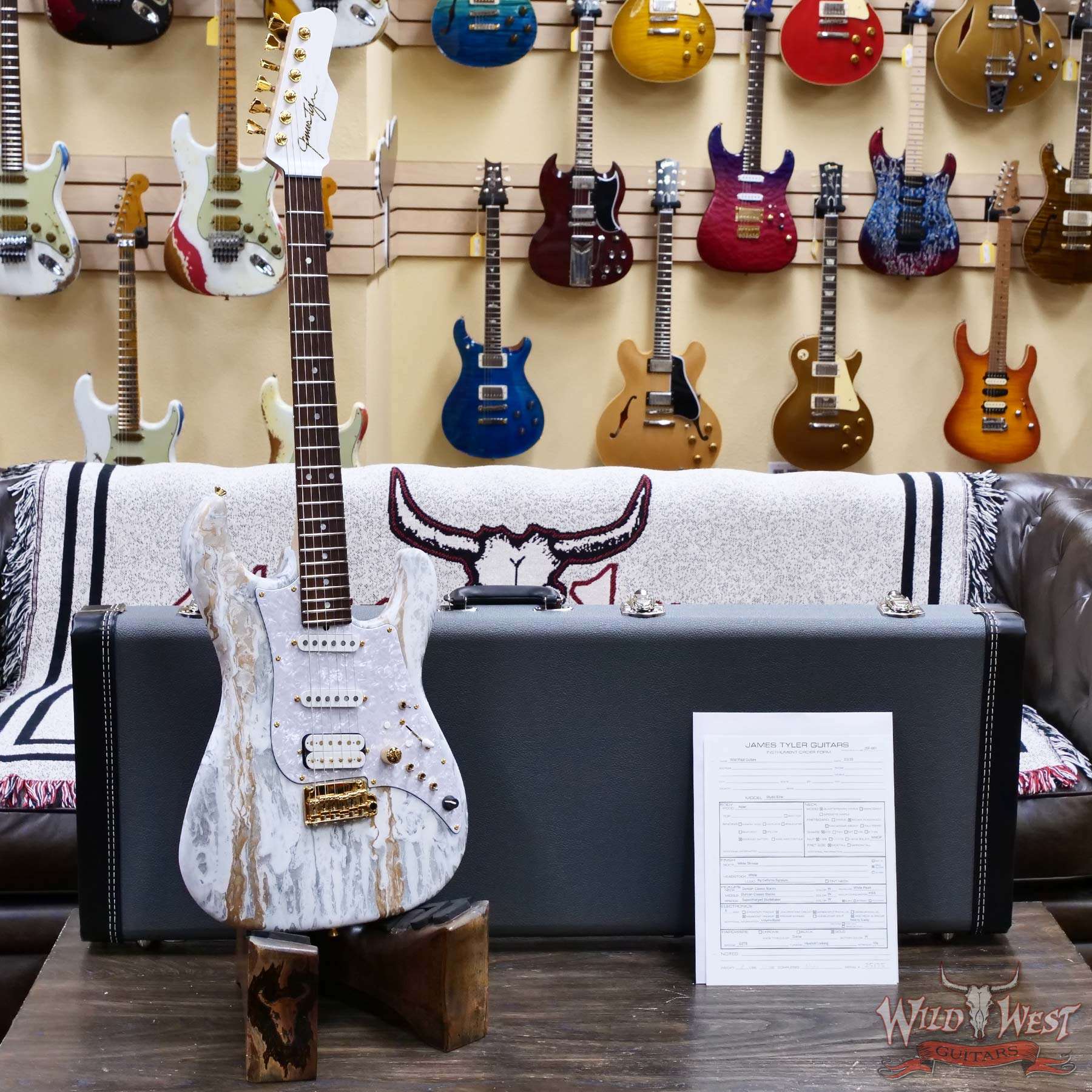

    Case James Tyler G&G Deluxe Grey Tolex Hardshell Case
    Weight 7.65 Pounds (7 lbs 10 oz)
