Alnico 5 magnets, counter clockwise winding direction, screw coil south and slug coil north polarity, 53mm wide f spacing, 50mm narrow g spacing. straight humbuckers have a standard coil layout and slanted humbuckers have a traditional Tyler coil layout with pickup at angle and offset coils. dc specs 17.60 +/-












DESCRIPTION

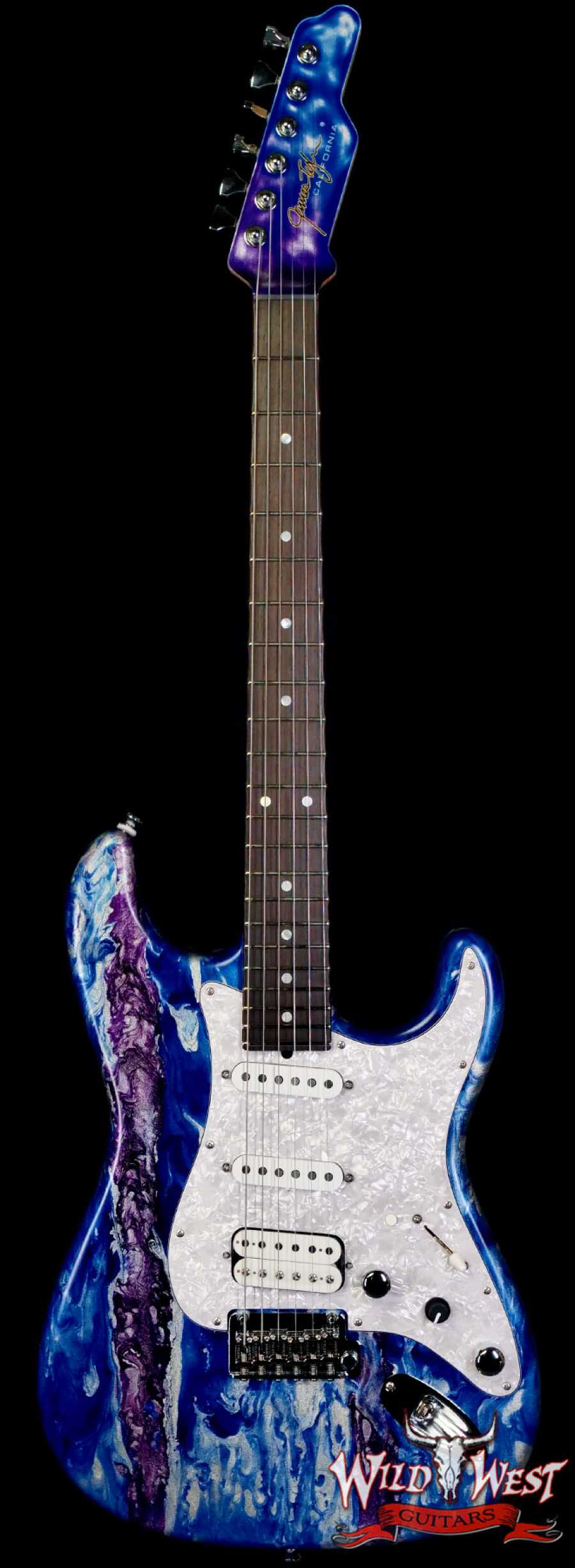

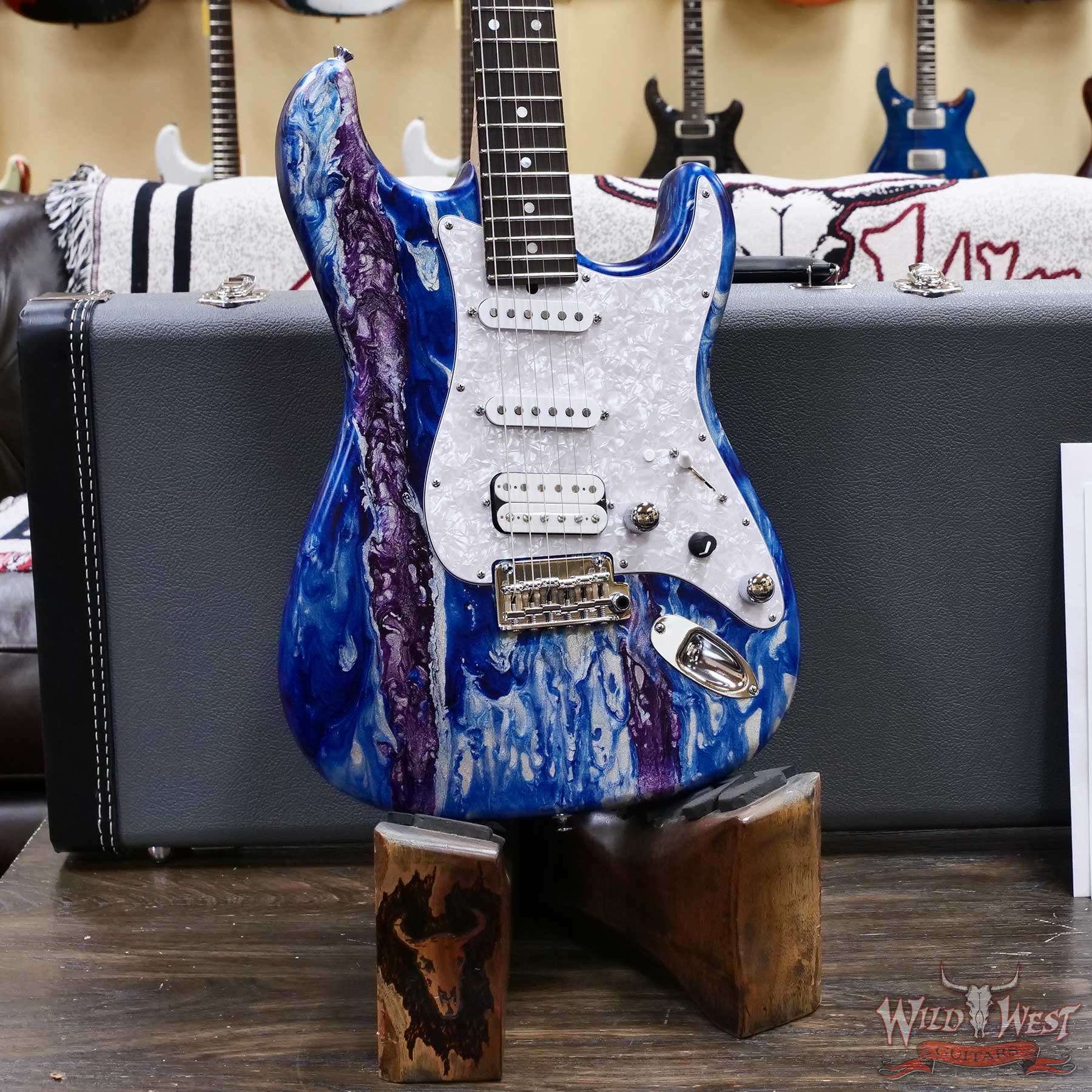

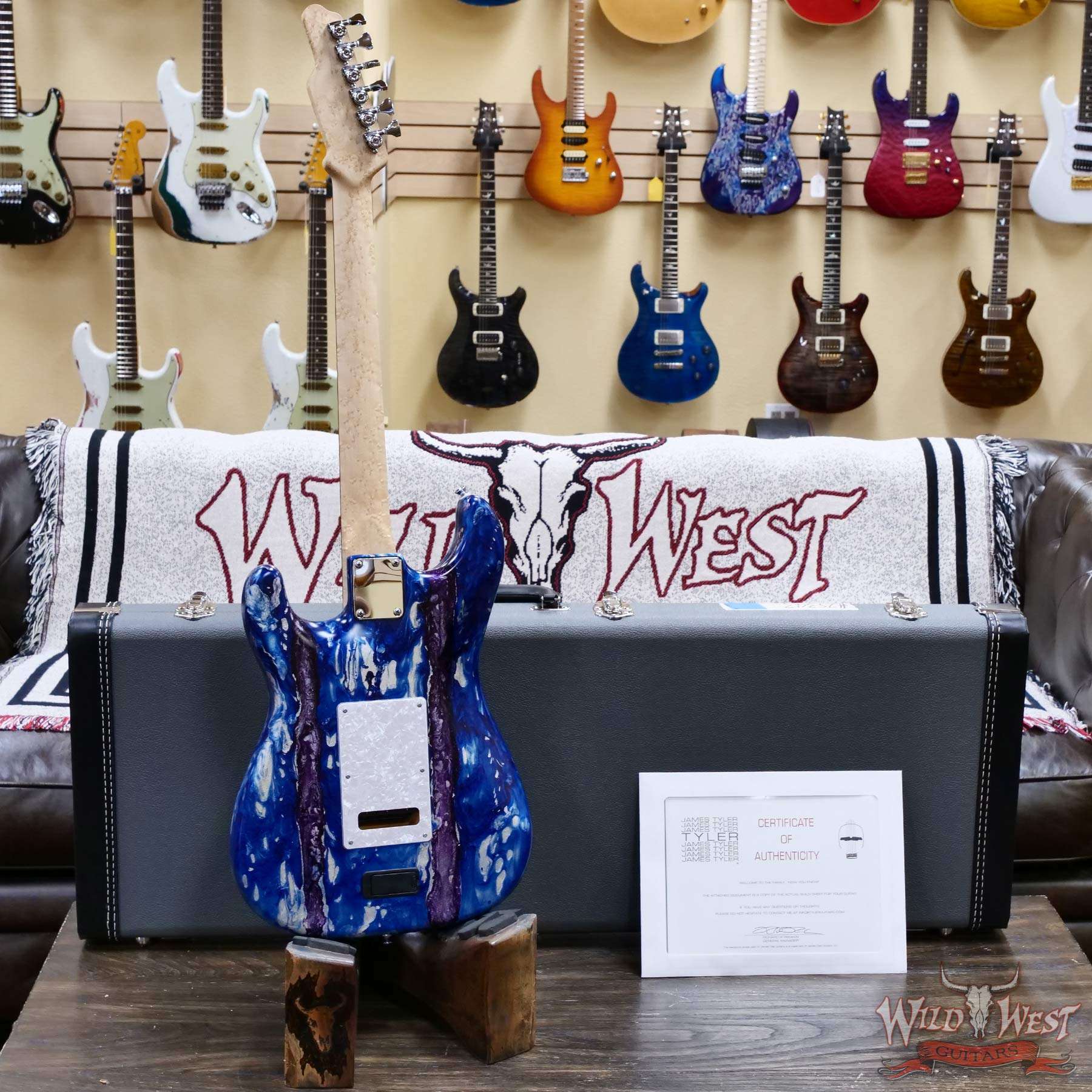

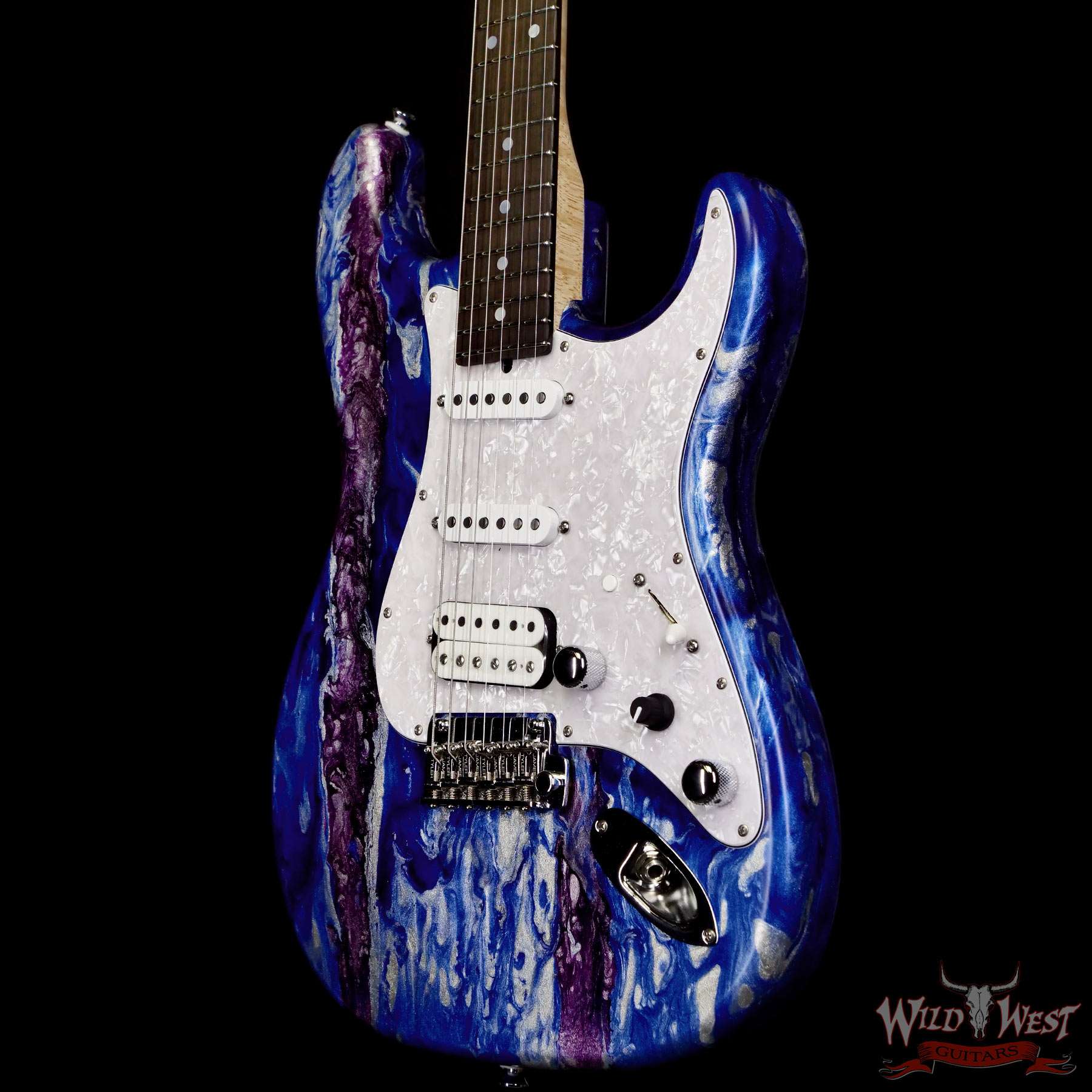

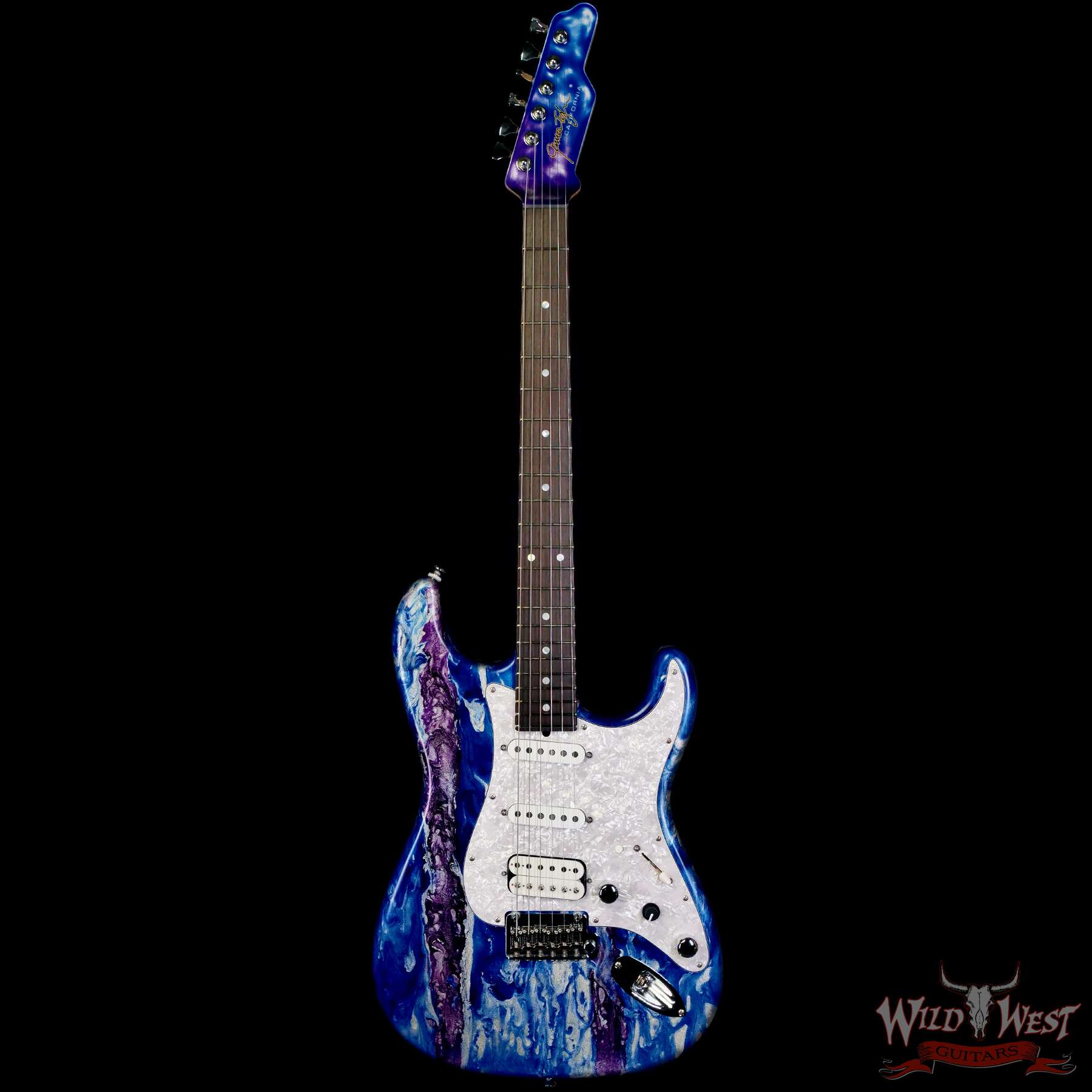

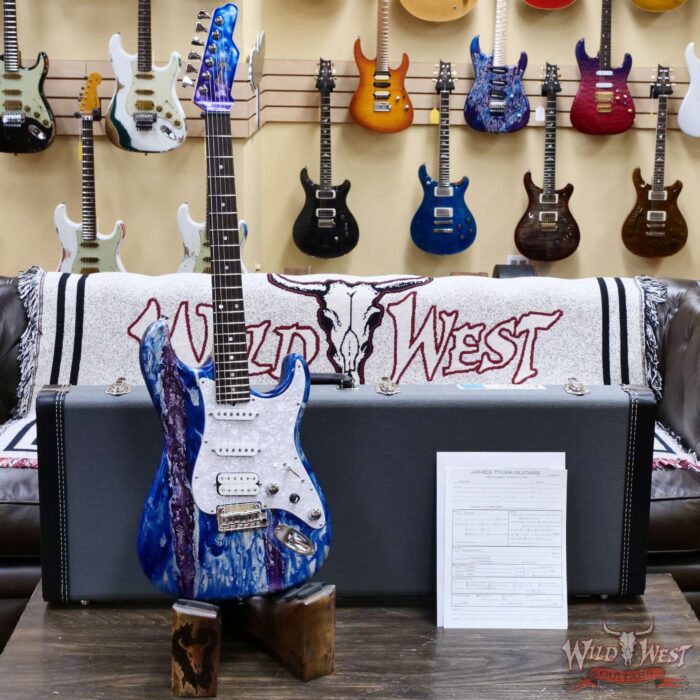

James Tyler USA LA Studio Classic HSS Mamywo Body with Birdeye Maple Neck Blueberry Shmear 7.70 lbs
JTS 5500 – Neck/Middle Singlecoil
Alnico 5 Single Coil
Neck: Characterized by the familiar sound of the Alnico 5 magnets with more attack, more chime and more power. Full, balanced and responsive with good low end and upper mid sparkle. Wound for SSH application using a 500k volume pot. Nice vibrant 3D qualities.
Middle: Has the same characteristics of the neck but is reverse wound and has reverse polarity for hum cancelling in switch positions 2 and 4. Nice vibrant 3D qualities.
Neck: alnico 5 magnets, counter clockwise winding direction on neck and bridge pickups, clockwise winding direction on middle pickups, north pole top on middle pickups, south pole top on neck and bridge. dc specs 6.90 +/-
Super – Bridge Humbucker
High Output Humbucker
Modern straight-up rock pickup. Strong low end, less mid-range push than the Shark or the California Special, but more top end with a nice presence. Great for high gain. Cleans up nicely.
FEATURES
Model | James Tyler USA LA Studio Classic HSS |
Builder | James Tyler Guitars |
Year | 2025 |
Body Type | Solid Body |

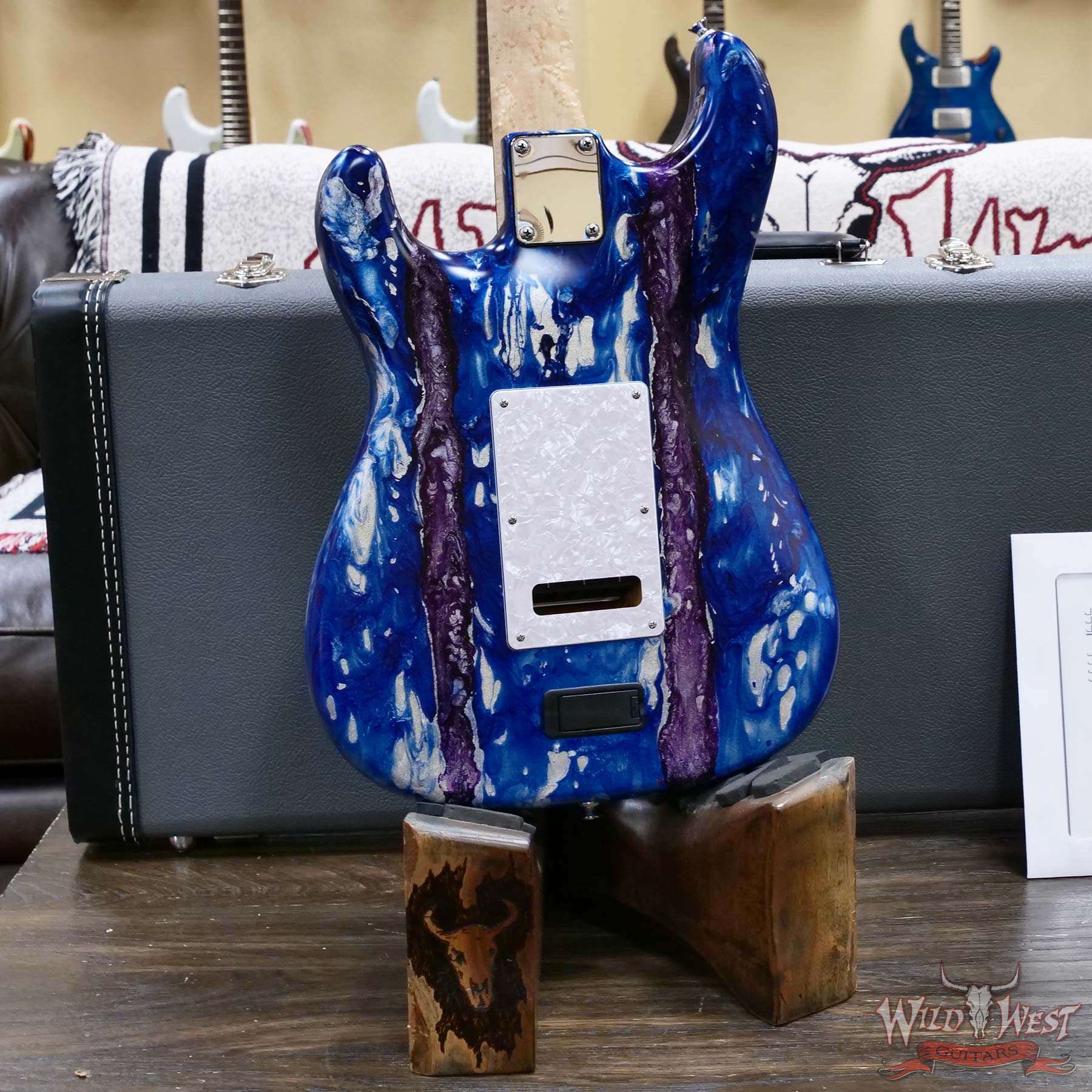

Body Wood | Mamywo (Jelutong) |
Finish Type | Semi-Gloss Finish |
Finish Color | Blueberry Shmear |

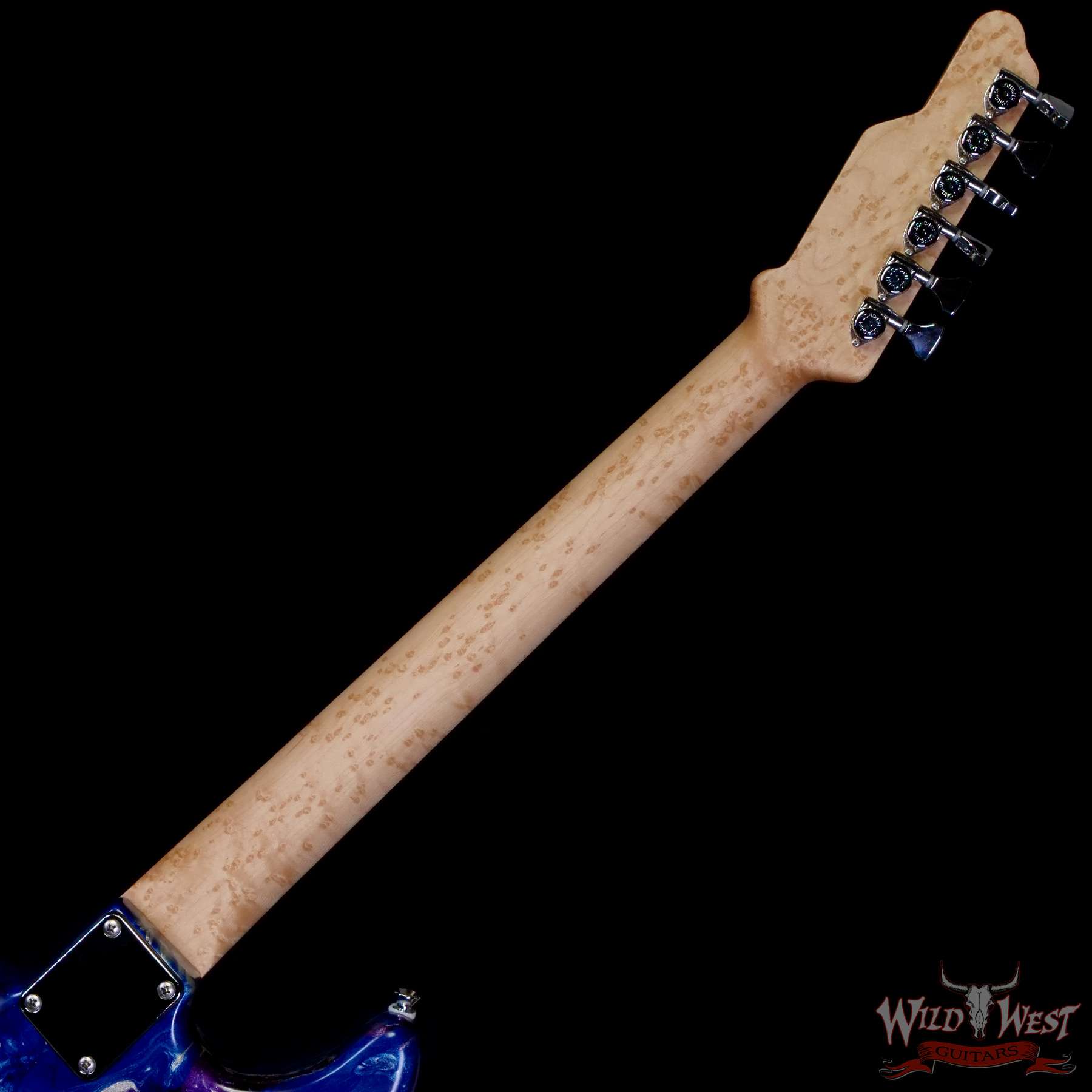

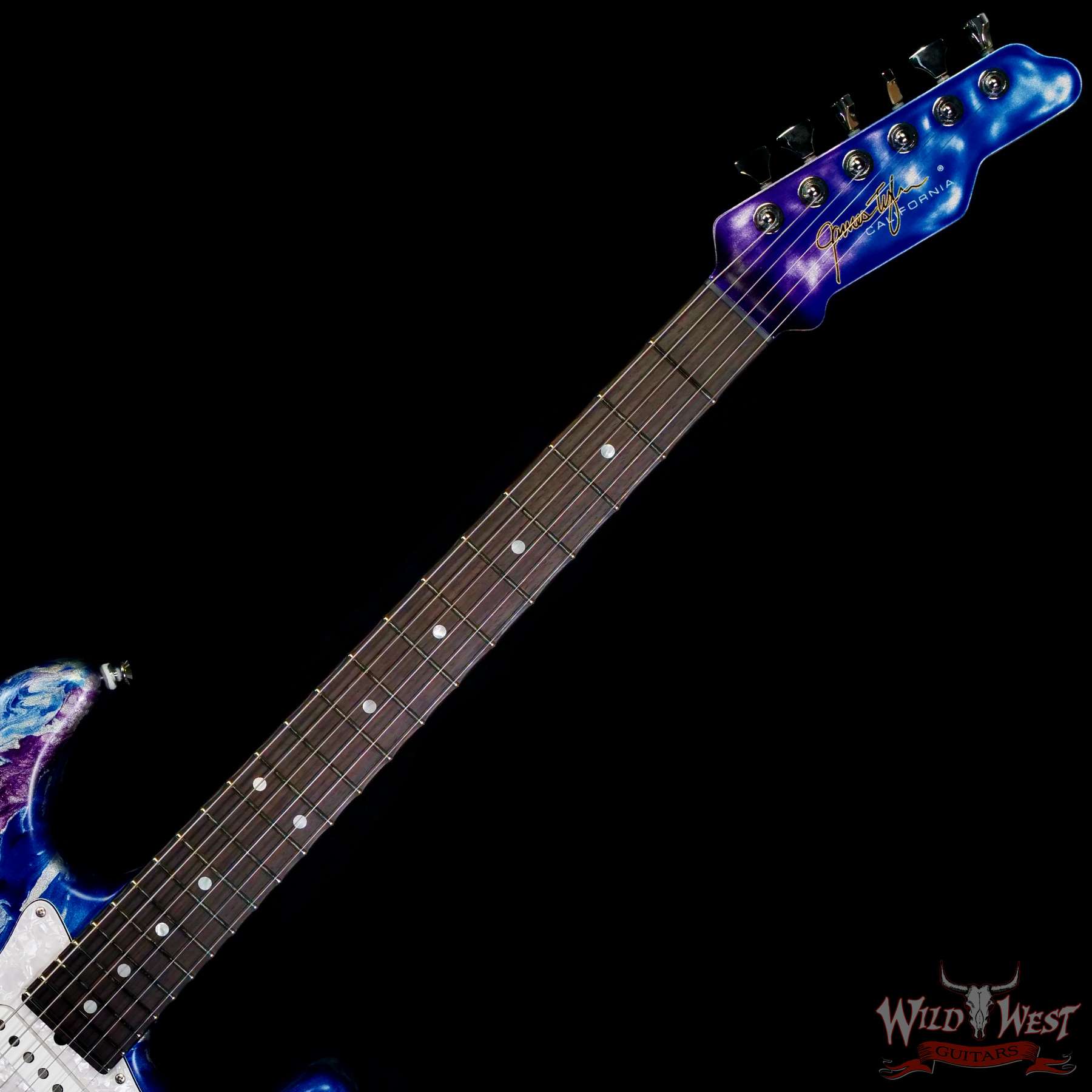

Neck Wood | 5A Birdseye Maple |
Fingerboard | 5A Birdseye Maple |
Neck Carve | Standard `64 Neck |
Scale Length | 25.5″ |
Neck Dimensions | .825” 1st – .950” 12th |
Neck Radius | Compound 10″-12″ |
Frets | 22 – Wide/Tall Frets |
Nut Width | 1 5/8″ / 41.3mm |
Nut Material | Tusq |
Neck Finish | Semi-Gloss |
Inlays | White Mother of Pearl Dots |

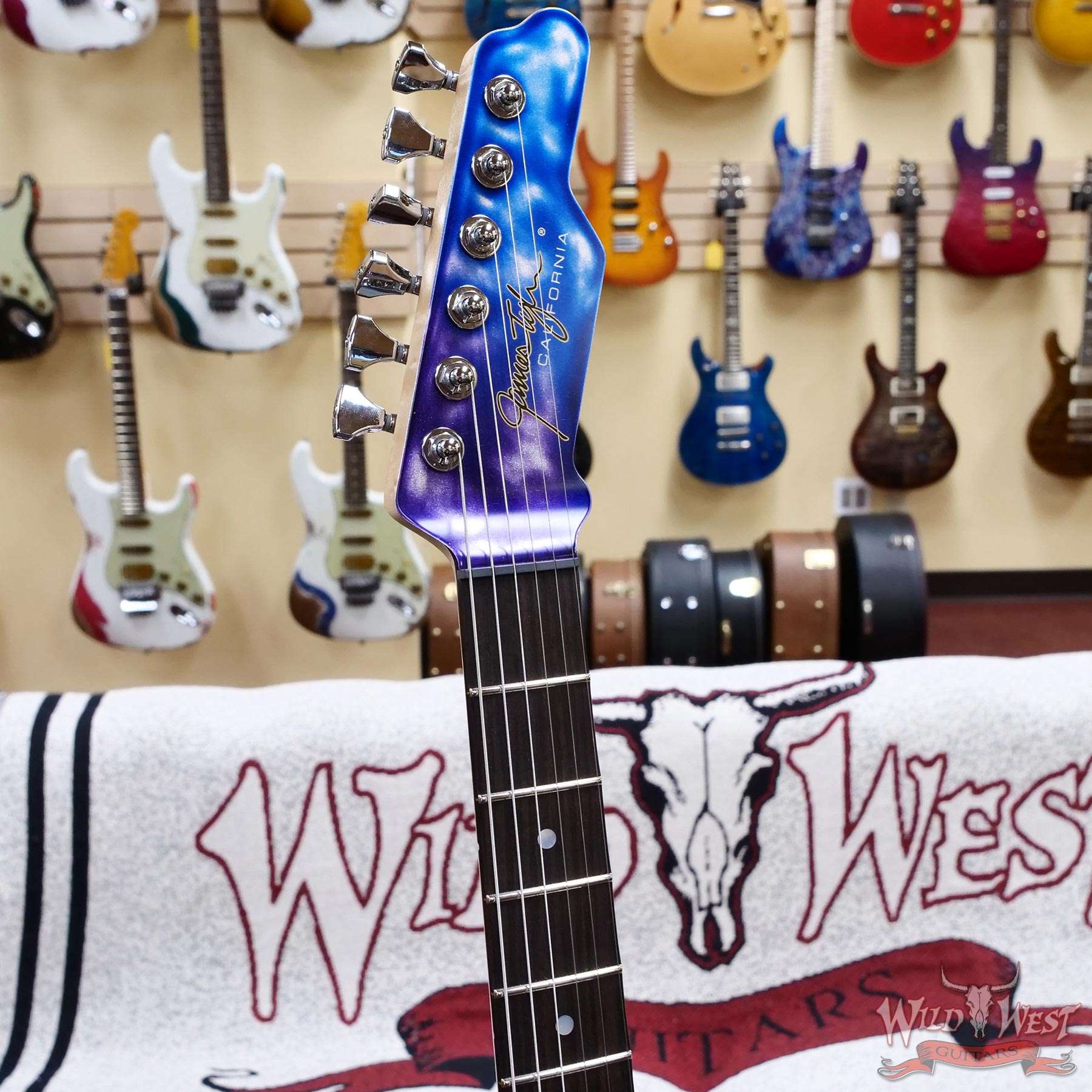

Headstock | Faux Matching Color |
Neck Pickup | JTS5500 |
Middle Pickup | JTS5500 |
Bridge Pickup | Super Humbucker |
Hardware | Chrome |
Bridge | G2TS |

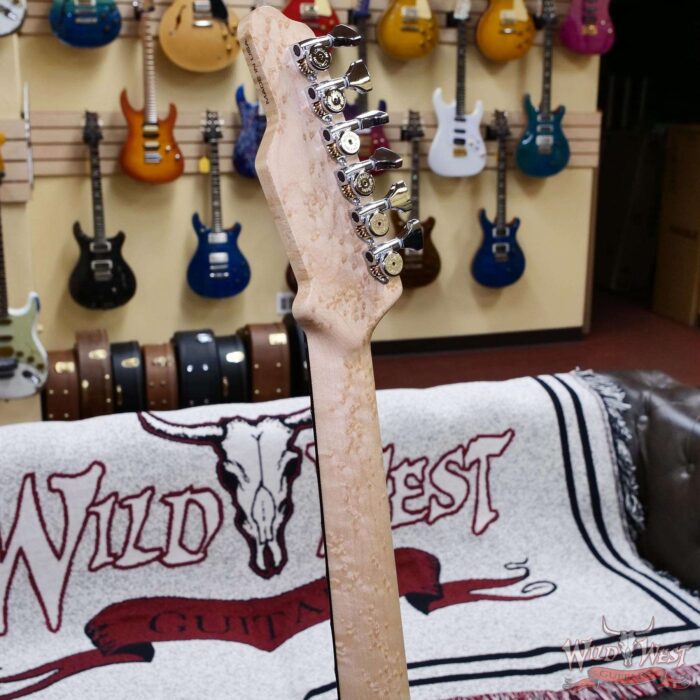

Tuners | Hipshot Locking |
Controls | Volume, Tone, 5-way Switch, Midboost Preamp with Bypass Button |
Case | James Tyler G&G Deluxe Grey Tolex Hardshell Case |
Weight | 7.70 Pounds (7 lbs 11 oz) |
